90mm Cut-out 3-CCT Downlight
90mm Cut-out 3-CCT Downlight
1. Slim design on the light, the height of the light is only 40-46mm, application to most of the building.
2. IC-4, IC-F rated, meet the market standard.

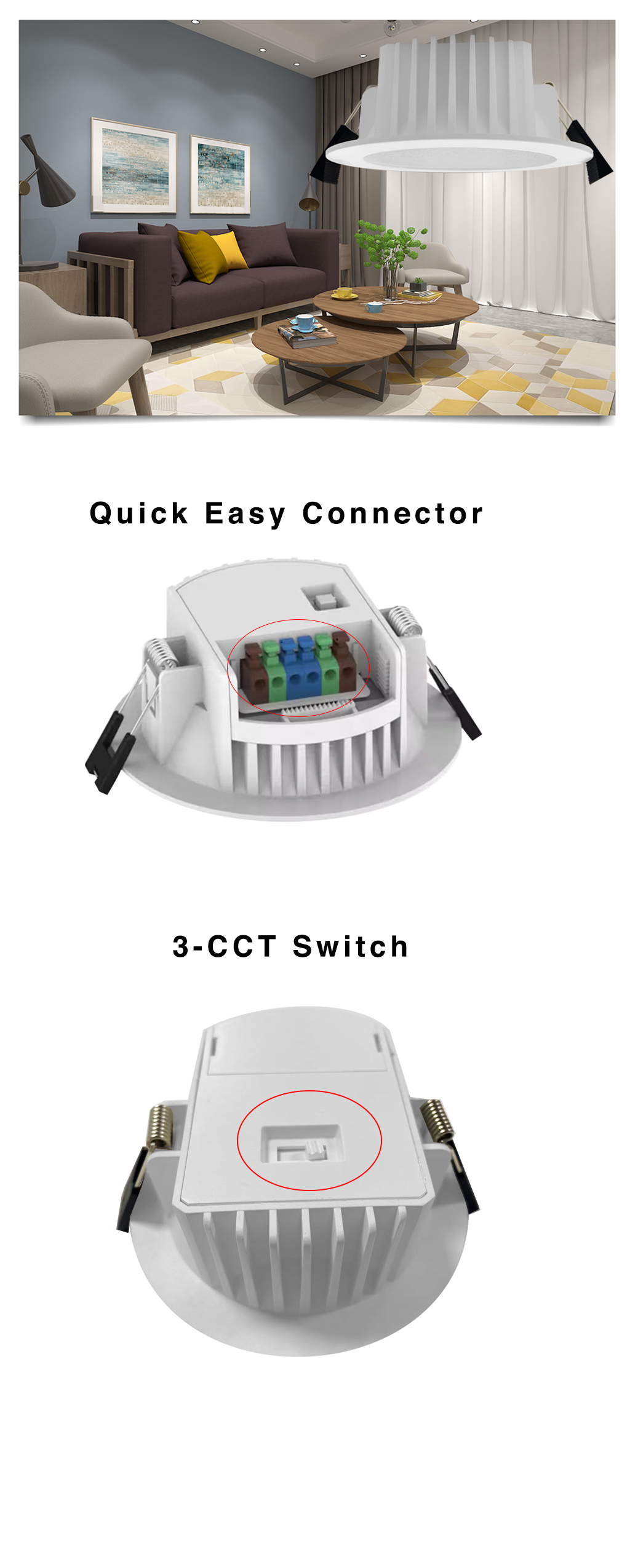

3. Quick and big connector on the light, easier to be installed , help you to reduce electrical labor cost.
4. 3-CCT switcher on the light, reduce stock, increase cash flow.
5. Recessed and flat fascias for you to choose.
6. PC+ aluminum of the housing, high cost effective.
7. High lumen output, the lumens efficiency can be up to 100lm/w
8. 90mm cut-out, suitable for most of the market requirement
9. Triac dimmable, can be excellent fit for most of branded trailing-edge dimmer, universal dimmer.
10. Certification: SAA, C-Tick, CE-EMC, CE-LVD, New ERP, UCKA
Technical Parameter
Input Voltage | 200V-240V | CRI (Ra>) | 80,90 |
Power Factor | >0.9 | Working Frequency | 50/60HZ |
Power | 5W, 7W, 8W | Cut Out | 90mm |
Diameter | 108mm | Height | 41mm/ 48mm |
Temperature | -20~50℃ | Lifetime | 30000h |
IP Rating | IP44 | Materials | Plastic cover aluminum |
Light Source | LED | LED Chip | SMD 2835 |
CCT | Tri-colour | Beam Angle | 100° |
Light Color | Natural/ warm/ cold | Installation | Recessed |
Models
Model |
Power |
Luminous Efficiency |
Luminous |
Dimmable |
Fascia |
DL11-03-05 |
5W |
80-100lm/w |
400-500lm |
Dimmable |
Flat |
DL11-03-07 |
7W |
80-100lm/w |
560-700lm |
Dimmable |
Flat |
DL11-03-08 |
8W |
80-100lm/w |
640-800lm |
Dimmable |
Flat |
DL11-03-05-R |
9W |
80-100lm/w |
400-500lm |
Dimmable |
Recessed |
DL11-03-07-R |
10W |
80-100lm/w |
560-700lm |
Dimmable |
Recessed |
DL11-03-07-R |
5W |
80-100lm/w |
640-800lm |
Dimmable |
Recessed |
