1295×295mm Tri-Colour Back Lit LED Panel Light

Short Description:



Size: 1295×295mm

Input Voltage: 220-240V

CCT Changing: 3000K/4000K/ 5000K

Certification: SAA, C-Tick, CE, RoHS

Application: Office & school lighting, shopping mall, super market, retailer shops. Hospital, laboratory, dust-free workshop.

CCT Change Way: Switch Control

Origin: Xiamen, China


Features

Spec & Models

Service

Faq

1295×295mm Tri-Colour Back Lit LED Panel Light

1.Innovative product,Light is even, no dark area.

2. Good quality aluminum, good heat sink.

3. Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.

4.Optional to non-dimmable, 0-10V dimmable, triac dimmable, Dali Dimmable.

5.Approved by SAA, C-tick, CE, RoHs etc.

6. Easily change colour temperature (CCT) from warm white 3000K, cool white 4200K to bright daylight 6700K. This can reduce stock qtys.

7. Switcher control easy to be operated and easy to be installed.



High quality PC diffuser with high light transmittance, anti-glare and easy to be cleaned.

7e4b5ce21-300x300



High quality lens to promise higher luminous efficiency, can be 140lm/w. And adding the plastic screw on the PCB board to let the PCB won’t be drop down.

38a0b9232-300x300

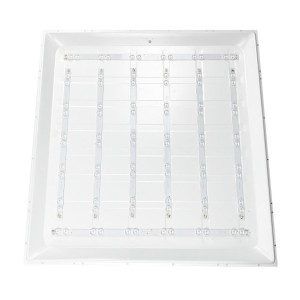

Two different CCT chips on the PCB board, reasonable distribution, shinning evenly.

3fc57bd6-300x300

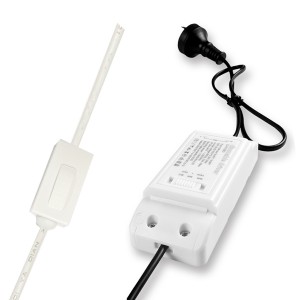

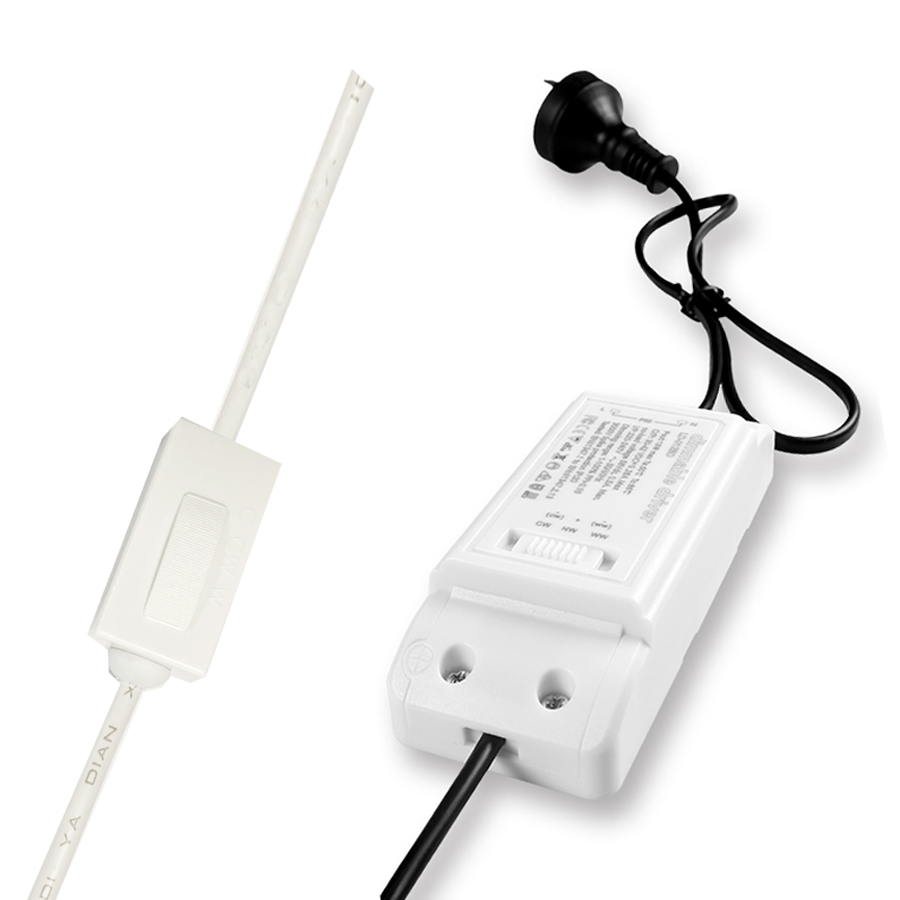

Optional to assemble the CCT switch on the DC cable and the driver.

09bd0db0



Ultra-thin lamp body,lighter weight and lower transportation cost. High quality of the back plate to meet good heat sink.



fc748049-300x166



Technical Parameter

Input Voltage 200V-240V CRI (Ra>) 80
Power Factor >0.9 Working Frequency 50/60HZ
Size 1295mm*295mm*34mm Thickness of back 3mm, 2.5mm
Temperature -2050℃ Lifetime 30000h
IP Rating IP20 Back Cover Iron
Cover Material Aluminum Frame Material Aluminum
Light Source LED LED Chip SMD 2835
CCT 3000K/4000K/5000K Beam Angle 115°
Light Color Natural/ warm/ cold Installation Recessed, Pendent



Models

Model

Power

Luminous Efficiency

Luminous

UGR

SM-SPL12030-25-3CCT

25W

120lm/w

3000lm

N

SM-SPL12030-30-3CCT

30W

120lm/w

3600lm

N

SM-SPL12030-25-U-3CCT

25W

120lm/w

3000lm

<19

SM-SPL12030-30-U-3CCT

30W

120lm/w

3600lm

<19

SM-LPL12030-28-3CCT

28W

110lm/w

3000lm

N

SM-LPL12030-36-3CCT

36W

110lm/w

4000lm

N



Packaging

Model

Net Weight

Gross Weight

Qtys(per carton)

Carton Size

SM-SPL12030-25-3CCT,SM-SPL12030-30-3CCT,SM-LPL12030-28-3CCT, SM-LPL12030-36-3CCT

11.1KG

12.6KG

6pcs

124X34X23cm

SM-SPL12030-25-U-3CCT,SM-SPL12030-30-U-3CCT

13.62KG

15.1KG

6pcs

124X34X23cm

Production Image

production image 1
production image 2
production image 3

Factory Environment

edf
factory
factory environment 3
edf

Factory Environment

shipment 1
shipment 3
shipment 2
