1295×295mm Back-lit Panel Light
High Quality 120lm/w 1295×295mm Back-lit Panel Light
1. Innovative product,Light is even, no dark area.
2. Good quality aluminum, good heat sink.
3. Easy to install. Ideal to be built into system ceilings, offices, and can be used as ahanging fixture.
4. Optional to non-dimmable, 0-10V dimmable, triac dimmable, Dali Dimmable.
5. Approved by SAA, C-tick, CE, RoHs etc.5. Approved by SAA, C-tick, CE, RoHs etc.

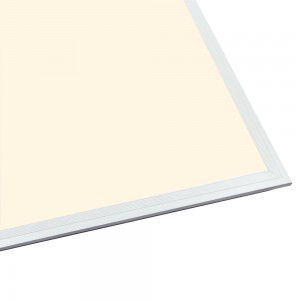

High quality PC diffuser with high light transmittance, anti-glare and easy to be cleaned.

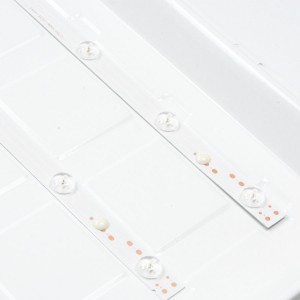

High quality lens to promise higher luminous efficiency, can be 140lm/w. And adding the plastic screw on the PCB board to let the PCB won’t be drop down.

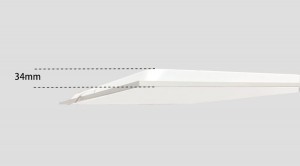

Ultra-thin lamp body,lighter weight and lower transportation cost. High quality of the back plate to meet good heat sink.
Technical Parameter
| Input Voltage | 200V-240V | CRI (Ra>) | 80 |
| Power Factor | >0.9 | Working Frequency | 50/60HZ |
| Size | 595mm*595mm*34mm | Thickness of back | 3mm, 2.5mm |
| Temperature | -20～50℃ | Lifetime | 30000h |
| IP Rating | IP20 | Back Cover | Iron |
| Cover Material | Aluminum | Frame Material | Aluminum |
| Light Source | LED | LED Chip | SMD 2835 |
| CCT | 3000K, 4000K, 5000K, 6000K,Tri-color | Beam Angle | 115° |
| Light Color | Natural/ warm/ cold | Installation | Recessed, Pendent |
Models
|
Model |
Power |
Luminous Efficiency |
Luminous |
UGR |
|
SM-SPL6060-25 |
25W |
120lm/w |
3000lm |
N |
|
SM-SPL6060-30 |
30W |
120lm/w |
3600lm |
N |
|
SM-SPL6060-25-U |
25W |
120lm/w |
3000lm |
<19 |
|
SM-SPL6060-30-U |
30W |
120lm/w |
3600lm |
<19 |
|
SM-LPL6060-28 |
28W |
110lm/w |
3000lm |
N |
|
SM-LPL6060-36 |
36W |
110lm/w |
4000lm |
N |
Packaging
|
Model |
Net Weight |
Gross Weight |
Qtys(per carton) |
Carton Size |
| SM-SPL6060-25,SM-SPL6060-30,SM-LPL6060-28,SM-LPL6060-36 |
10.2KG |
11.65KG |
6pcs |
64X64X23cm |
| SM-SPL6060-25-U,SM-SPL6060-30-U |
12.96KG |
14.15KG |
6pcs |
64X64X23cm |
Production Image
Factory Environment
Factory Environment
Q1. Can I get some samples?
You are welcomed to apply for the samples to check the quality.
Q2. What is the delivery time of an order?
It will be 25-30 days for a normal order.
Q3. Can you cooperate customer to develop their own products?
We have our own R&D team, from electrical to structure. The best suggestions of the products of the products can be provided by them. We are also professional in opening the tooling.
Q4. What is the payment item can be approved in your company?
T/T, LC. OA also can be considered sometimes.
Q5. How does your factory to control the quality?
Quality is the most important item in our company. IQC, IPQC and OQC all can not be ignore during our production. All of the inspection of our products are based on the ISO quality standard.
